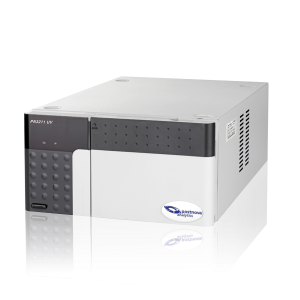

PN3211 UV Detector
The PN3211 UV Detector provides an exceptional level of sensitivity and stability. As a high sensitive UV detector the PN3211 has a noise level of 0.5×10-5 AU max., making it one of the most sensitive UV detectors (ASTM Standards).
Features:
- Greater Baseline Stability
Supplied as standard, a temperature-controlled flow cell eliminates inconsistencies caused by changes in absorbance due to shifts in room temperature. This helps to increase the baseline stability and the analysis reliability. - Superior Linearity - 2.5AU
Using newly developed signal processing technology the stray-light correction function has been enhanced and the linearity has been improved. This expanded linearity combines various noise-reduction technologies to provide users with a wide dynamic range and allows the analysis of your target compound and minor impurities in a single run. - Internal Validation Protocol
The incorporation of a low-pressure mercury lamp for wavelength calibration ensures simple calibration in the ultraviolet region. - Dual-Wavelength Measurement
Monitor two components in the UV range simultaneously.
Options:
Flow Cells
- Z-DET-3211-001 Analytical, Peek
- Z-DET-3211-002 Analytical, Stainless Steel
- Z-DET-3211-003 Preparative, Stainless Steel
Detector Lamps
- Z-DL-PN3211 D2-Lamp, Pre-aligned, Longlife
Specifications
Light Source:
Deuterium lamp
Wavelength Range:
190 – 700 nm
Wavelength Accuracy:
± 1 nm
Noise Level:
± 0.25x10-5 AU max.
Drift:
1x10-4 AU/h max. (250 nm, room temperature constant, air in cell)
3x10-4 AU/h max. (250 nm, room temperature fluctuation less than 2°C, air in cell)
Operating Temperature:
4 - 35°C
Cell Temperature Range:
5°C above room temperature to 50°C, at 1°C steps
Response:
11 steps selectable (corresponding to time constant 0.02, 0.05, 0.1, 0.5, 1.0, 1.5, 2.0, 3.0, 6.0, 8.0, 10.0 sec)
Range:
0.0001 – 2.56 AUFS (selectable in 0.0001 AUSF steps)
Zero Adjustment:
Auto zero function, baseline shift function
Wavelength Steps:
1–5 nm, selectable in 5 steps
2–5 nm when W lamp is used
Scanning Speed:
10 – 50 nm/sec, in 5 steps
Spectrum Plot:
output speed 1, 3, 10 nm/sec
Optical Path Length:
10 mm
Cell Volume:
12 µL
Pressure Resistance:
12 MPa
Wetted Surface Materials:
SUS316L, quartz, PFA
Dimensions (WxHxD)/Weight:
260 x 140 x 420 mm; 13 Kg
Power Requirements:
100/120/220-240 V, 50/60Hz
